DIP Converter, DC to DC Power Supply Manufacturer

Cincon designs and manufactures 3W - 75W DC/DC DIP converters with industry standard and pin-out. Features are high efficiency, high operating temperature and wide input range. Cincon also provides non-isolation and high isolation DC/DC converters for variety of applications.

Cincon DIP Converter Introduction

For dip DC-DC converters, there are various packages such as DIP24 or SMD24 package from 3W to 15W, 1”x1” package from 10W to 30W, 2”x1” package from 10W to 75W, 2”x 1.6” & 2”x2” packages from 15W to 40W. With more-than-29-year R&D experiences, Cincon is specialized in railway, industrial, ITE, 5G telecom, medical and household applications.



For industrial applications, all of DIP DC-DC converters are suitable for industrial use.

For railway applications, there are EN 50155 compliant DIP converters such as DIP24 8W & 10W, 2”x1” package 20W & 40W. Furthermore, Cincon offers 2”x1”, 20W, 18:1 ultra-wide input range DC-DC converter which covers more distributed voltages of the system of the application.



Cincon also has more DIP converter products which are EN50155 designed to meet for you to choose.

18:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)
NEW EC7AW18 10W 8.5~160V 5V, 12V, 15V, ±5V, ±12V, ±15V 3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
1.25x0.80x0.50(DIP24)
    EC7BW18 20W 8.5~160V 12V, 15V, 5V, ±12V, ±15V, ±24V 3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant
2.00x1.00x0.40(DIP)

4:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)

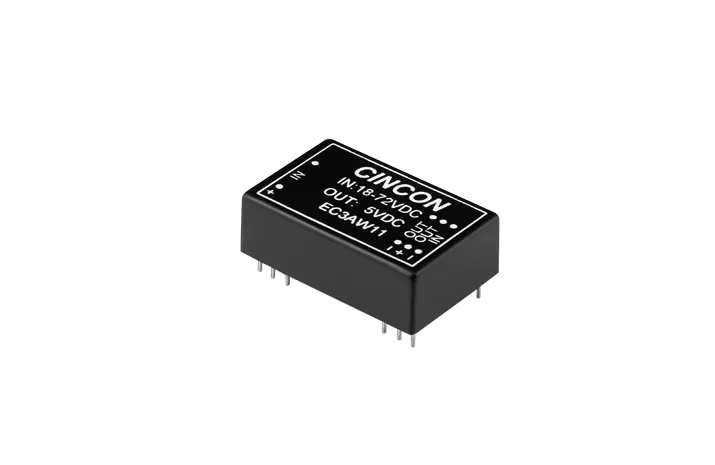

    EC3AW 3W 18~72V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500/1.5K/3KVdc Isolation 1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

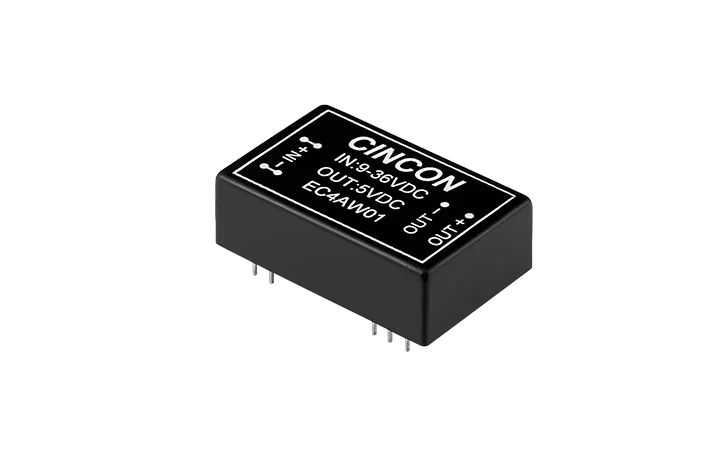

    EC4AW 6W 18~72V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5K/3KVdc Isolation 1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
    EC6AW 8W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation
EN50155 Compliant
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

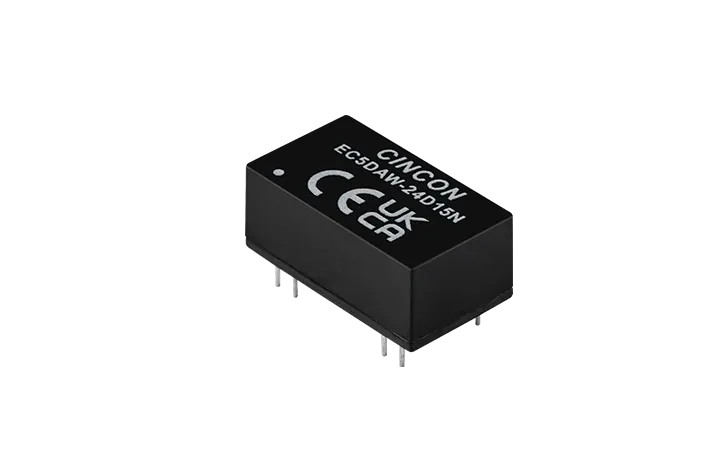

NEW EC5DAW 10W 9~36V, 18~74V 3.3V, 5V, 12V, 15V, ±12V, ±15V 3KVDC Isolation 0.95x0.54x0.39(DIP16)
    EC2SBW 10W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation 1.00x1.00x0.40(DIP)

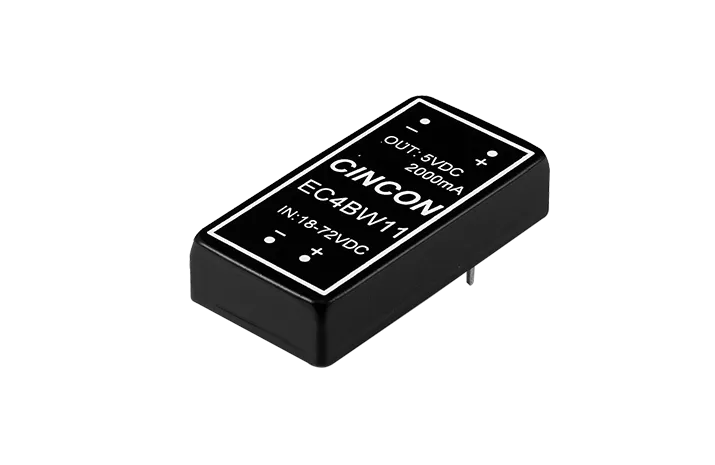

    EC4BW 10W 18~72V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500Vdc Isolation
EN55022 Class A
2.00x1.00x0.40(DIP)

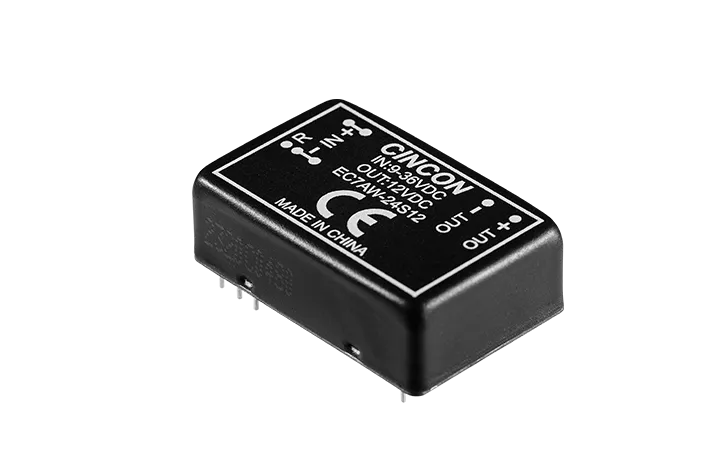

NEW EC7AW 10W 18~74V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 3KVdc Isolation
EN55032 Class A
1.25x0.80x0.40(DIP24)

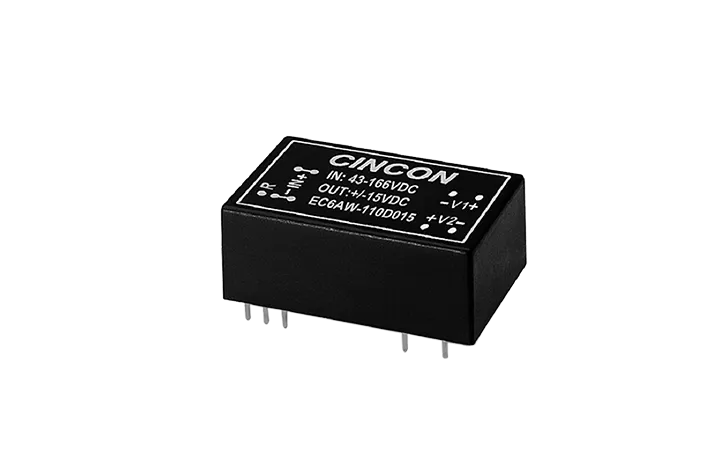

    EC6AW-110 10W 43~160V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
1.25x0.80x0.50(DIP24)

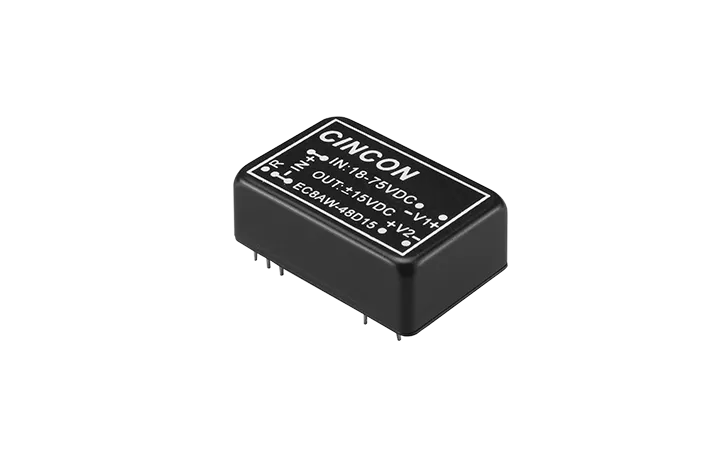

    EC8AW 15W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation
EN55032 Class A
1.25x0.80x0.40(DIP24)

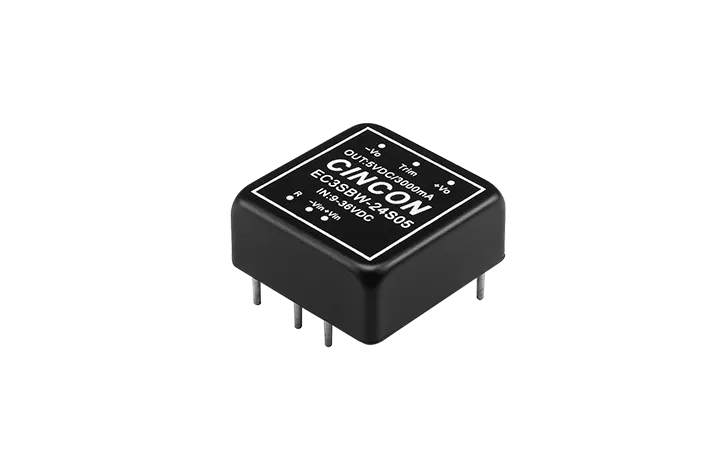

    EC3SBW 15W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation 1.00x1.00x0.40(DIP)

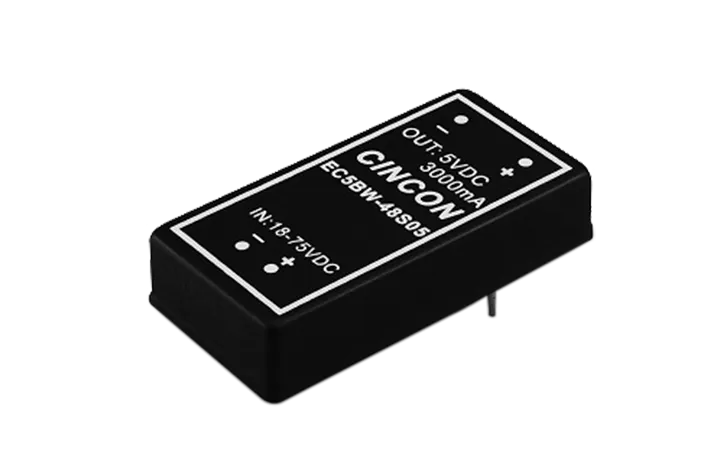

    EC5BW 15W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation
EN55032 Class A
2.00x1.00x0.40(DIP)

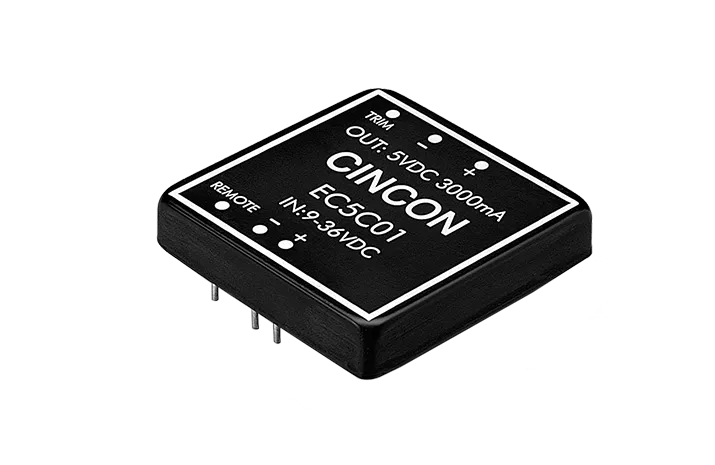

    EC5C 15W 18~72V, 9~36V 12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V, ±5V 500Vdc Isolation
EN60950-1
2.00x2.00x0.40(DIP)

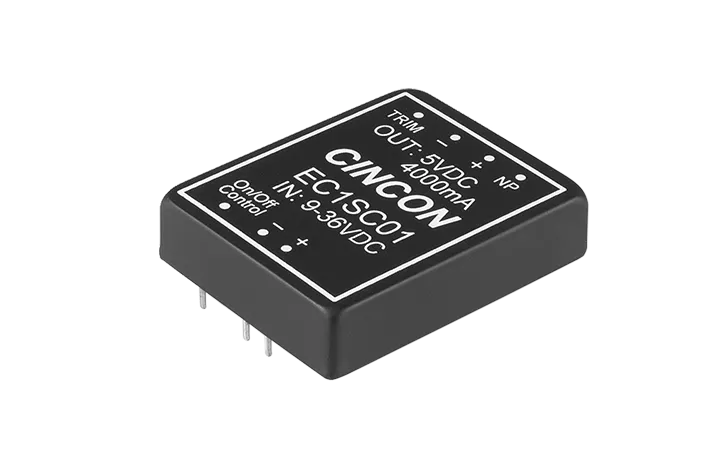

    EC1SC 20W 18~72V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V EN55022 Class A 2.00×1.60×0.45(DIP)

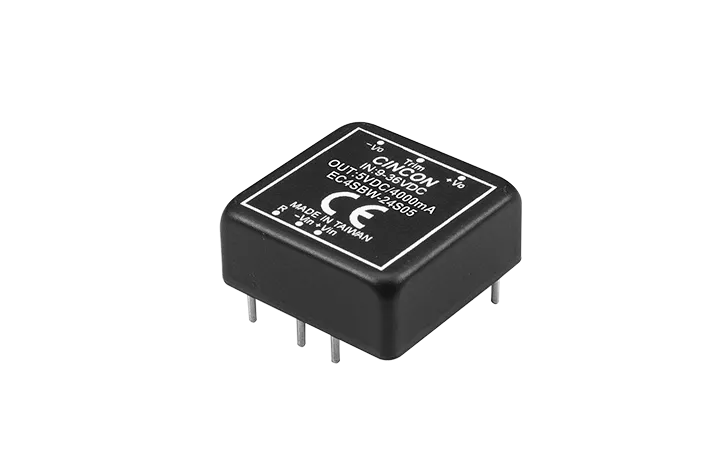

    EC4SBW 20W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation 1.00x1.00x0.40(DIP)

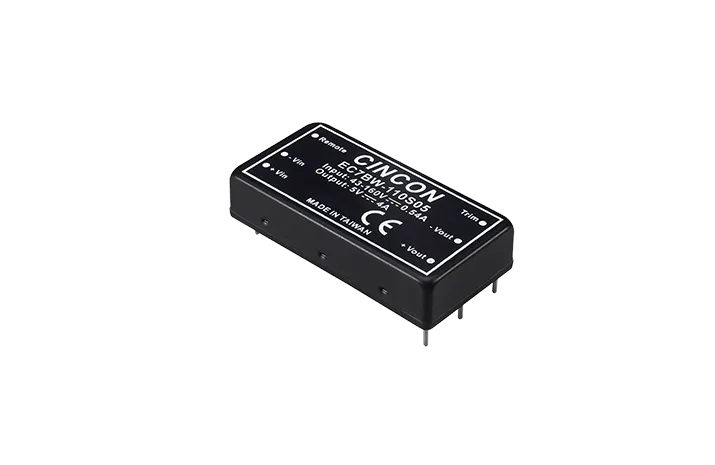

    EC7BW-110 20W 43~160V 5V, 12V, 15V, ±12V, ±15V 3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
2.00x1.00x0.40(DIP)

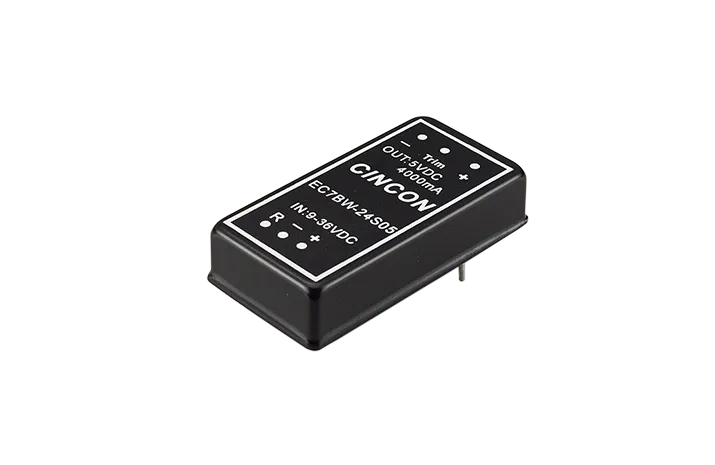

    EC7BW 20W 9~36V, 18~75V 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V 1.5KVdc Isolation
EN45545-2
EN50155 Compliant
2.00x1.00x0.40(DIP)

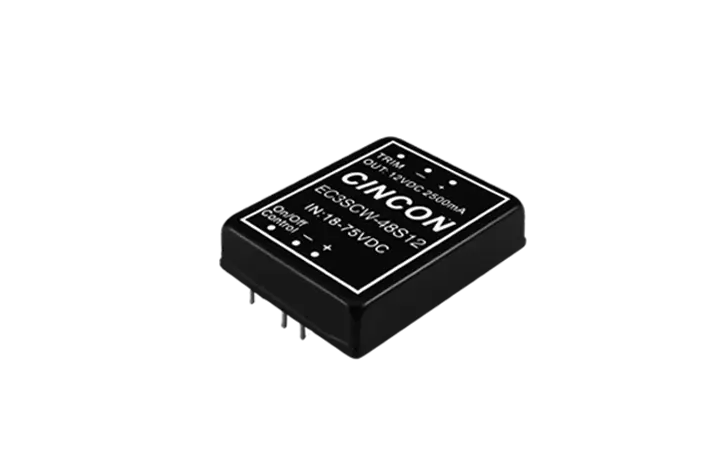

NRND EC3SCW 30W 18~75V, 9~36V 12V, 15V, 3.3V, 5V 1.5KVdc Isolation
EN60950-1
2.00×1.60×0.40(DIP)
    EC5SBW 30W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation
UL62368-1
1.00x1.00x0.40(DIP)

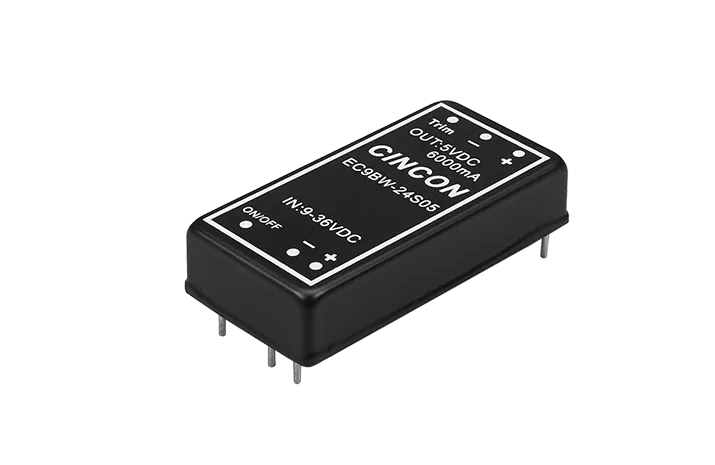

    EC9BW 30W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation 2.00x1.00x0.40(DIP)

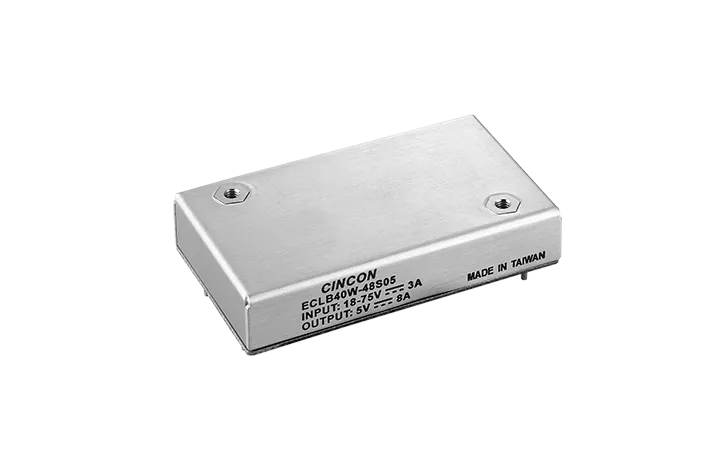

    ECLB40W 40W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation
With Mounting Inserts
2.05x1.20x0.40(DIP)

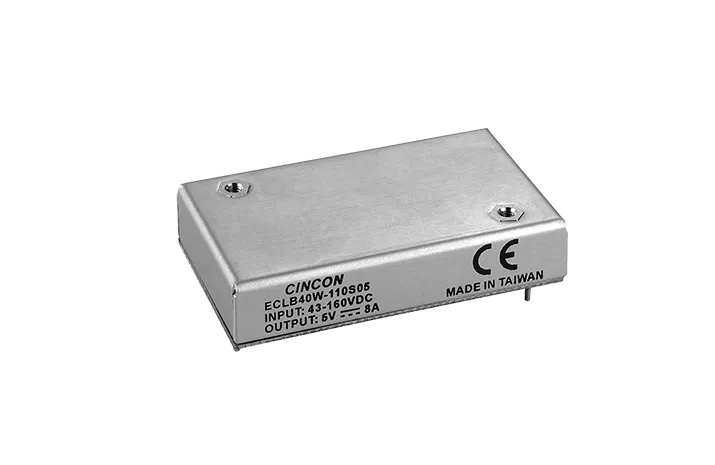

    ECLB40W-110 40W 43~160V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V 3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
2.05x1.20x0.40(DIP)
    ECLB60W 60W 18~75V, 9~36V 3.3V, 5V, 12V, 15V, ±12V, ±15V 1.5KVdc Isolation
With Mounting Inserts
2.05x1.20x0.40(DIP)
    ECLB75W 75W 18~75V, 9~36V 5V, 12V, 15V, ±12V, ±15V, ±24V 2.25KVdc Isolation
With Mounting Inserts
2.05x1.20x0.40(DIP)

2:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)

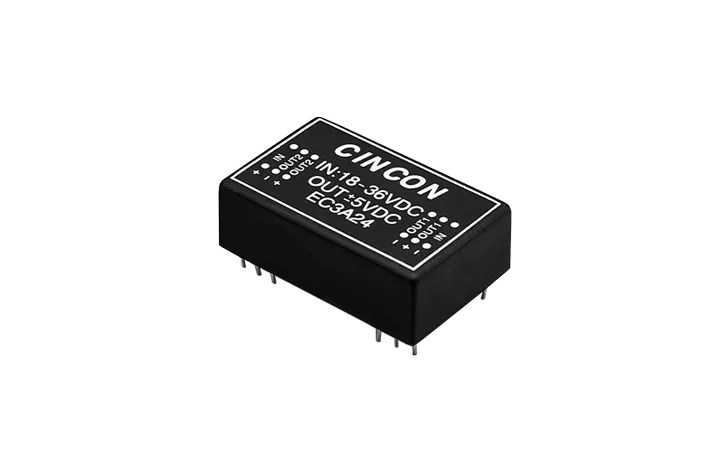

    EC3A 3W 18~36V, 36~72V, 4.5~6V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500/1.5K/3KVdc Isolation
UL60950-1
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

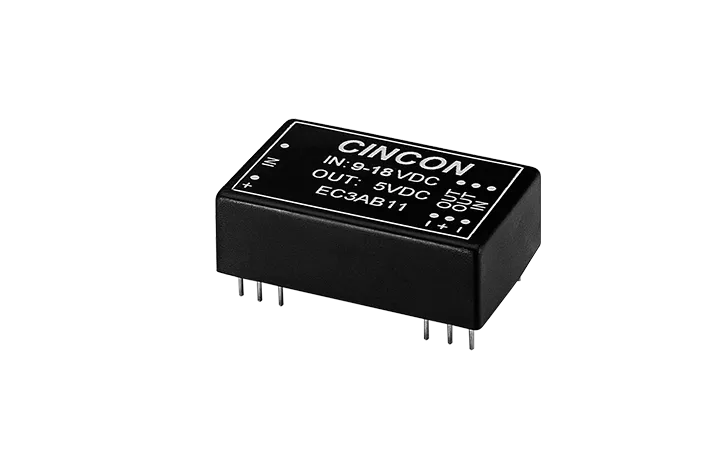

    EC3AB 3W 18~36V, 36~72V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500/1.5K/3KVdc Isolation
EN55022 Class B
UL60950-1
1.25x0.80x0.50(DIP24)
1.25x0.80x0.55(SMD24)

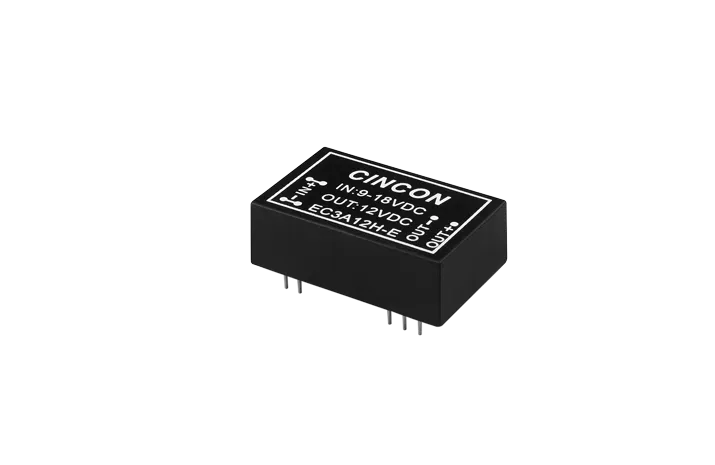

    EC3A-E 3W 18~36V, 36~72V, 4.5~9V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500/1.5K/3KVdc Isolation
EN55032 Class A
UL60950-1
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
1.25×0.80x0.41(SMD24)

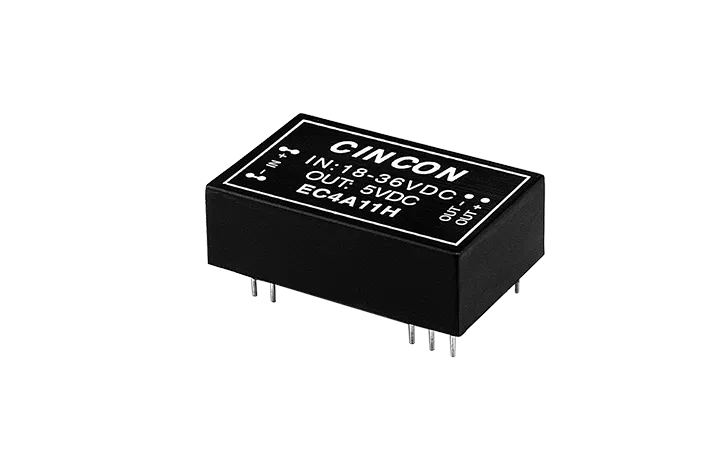

    EC4A 6W 18~36V, 36~72V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500/1.5K/3KVdc Isolation
UL60950-1
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

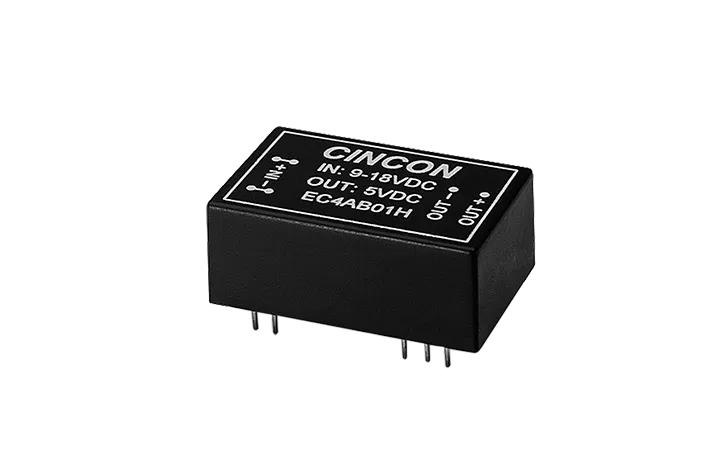

    EC4AB 6W 18~36V, 36~72V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500/1.5K/3KVdc Isolation
EN55022 Class B
UL60950-1
1.25x0.80x0.50(DIP24)
1.25x0.80x0.55(SMD24)

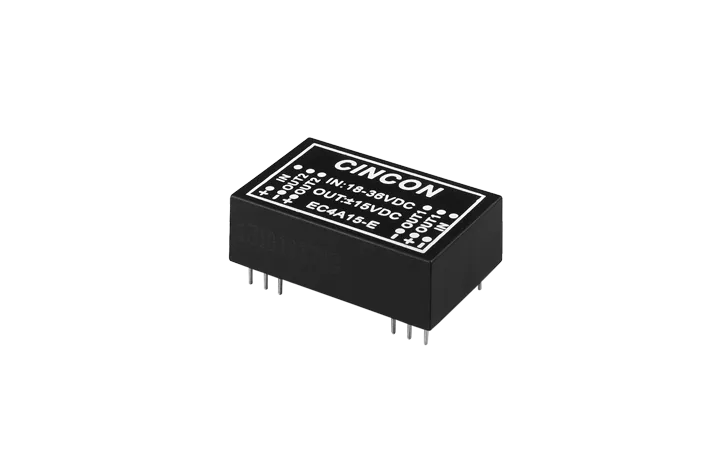

    EC4A-E 6W 18~36V, 36~72V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500/1.5K/3KVdc Isolation
EN55032 Class A
UL60950-1
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
1.25×0.80x0.41(SMD24)

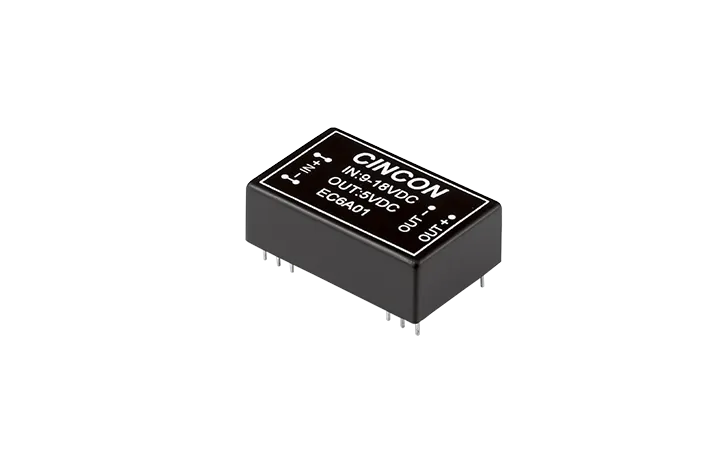

    EC6A 7.5W 18~36V, 36~72V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation
UL60950-1
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

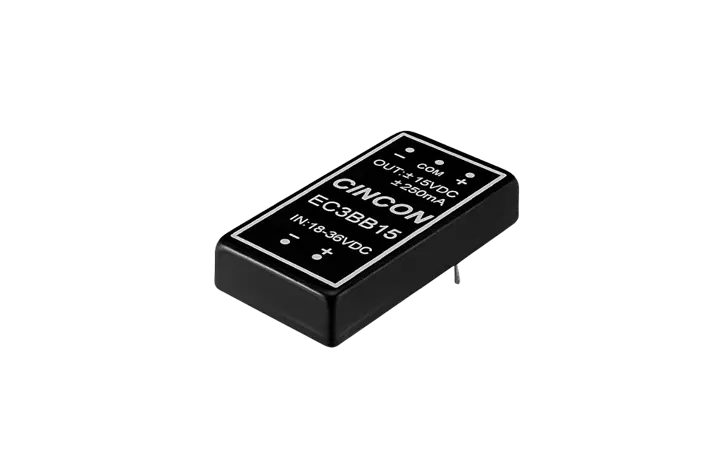

NRND EC3BB 7.5W 18~36V, 36~72V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1500Vdc Isolation
EN55022 Class B
2.00x1.00x0.40(DIP)

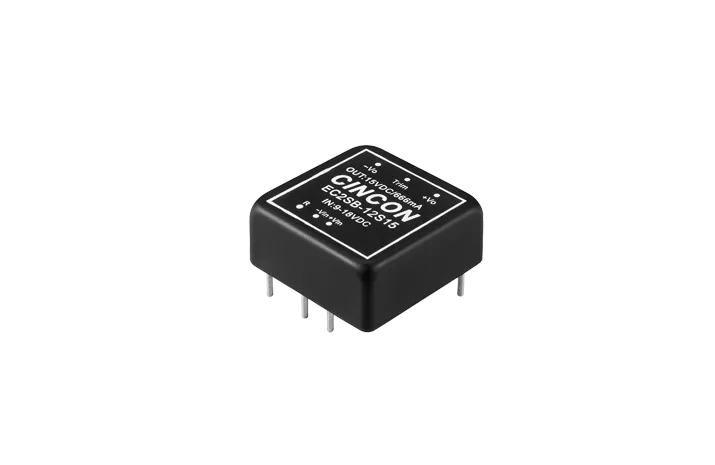

    EC2SB 10W 18~36V, 36~75V, 4.7~9V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation 1.00x1.00x0.40(DIP)
1.00x1.00x0.36(SMD)

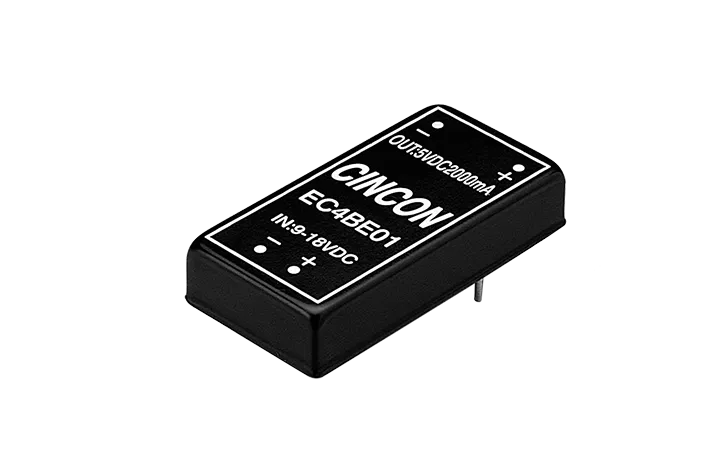

    EC4BE 10W 18~36V, 36~72V, 9~18V 12V, 15V, 5V, ±12V, ±15V, ±5V 500Vdc Isolation
EN55032 Class A
2.00x1.00x0.40(DIP)

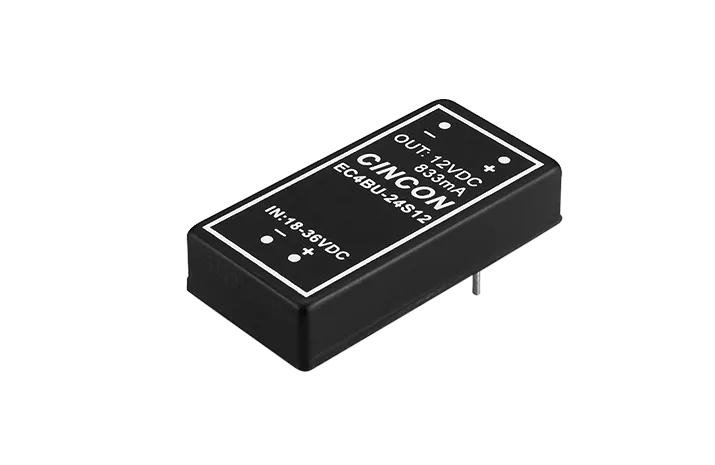

    EC4BU 10W 18~36V, 36~75V, 4.7~9V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation
EN55032 Class A
2.00x1.00x0.40(DIP)

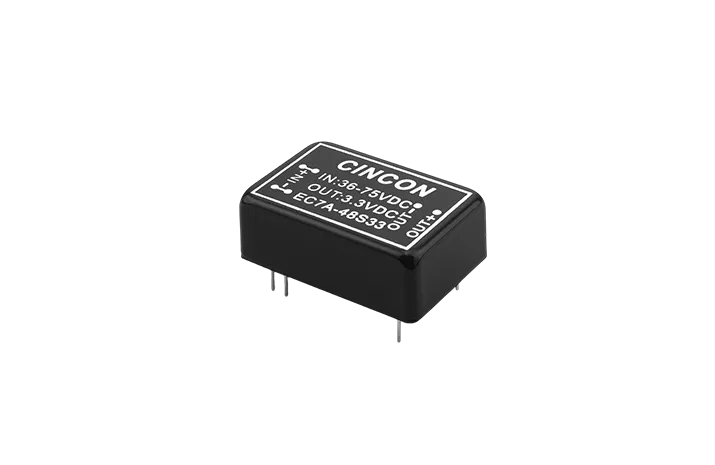

    EC7A 10W 18~36V, 36~75V, 9~18V 12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation
UL60950-1
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
    EC3SB 15W 18~36V, 36~75V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation 1.00x1.00x0.40(DIP)
1.00x1.00x0.36(SMD)

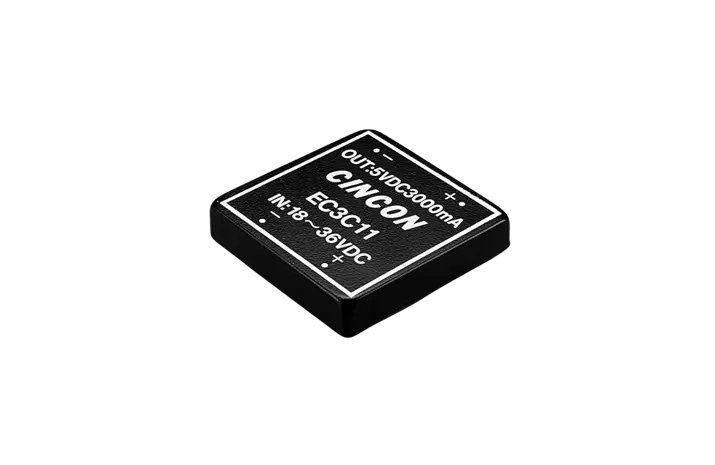

NRND EC3C 15W 18~36V, 36~72V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500Vdc Isolation 2.00x2.00x0.40(DIP)

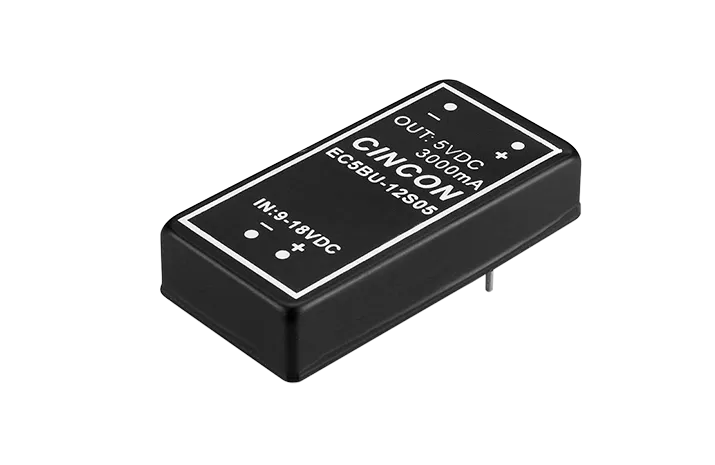

    EC5BU 15W 18~36V, 36~75V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation
EN55032 Class A
2.00x1.00x0.40(DIP)

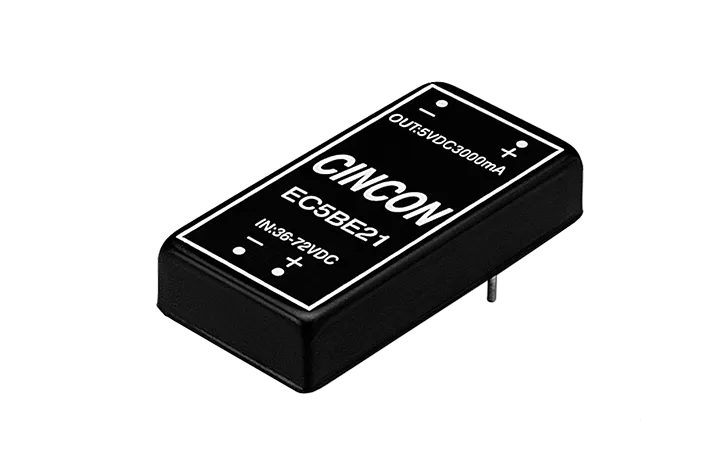

    EC5BE 15W 18~36V, 36~72V, 9~18V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500Vdc Isolation
EN55032 Class A
2.00x1.00x0.40(DIP)

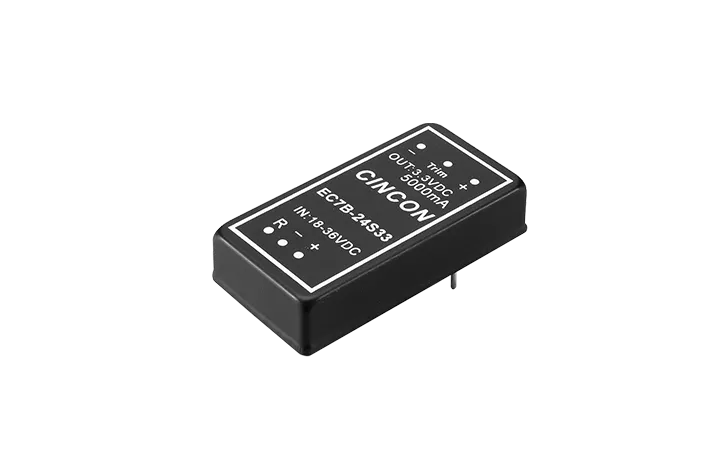

    EC7B 20W 18~36V, 36~75V, 9~18V 1.8V, 12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation 2.00x1.00x0.40(DIP)

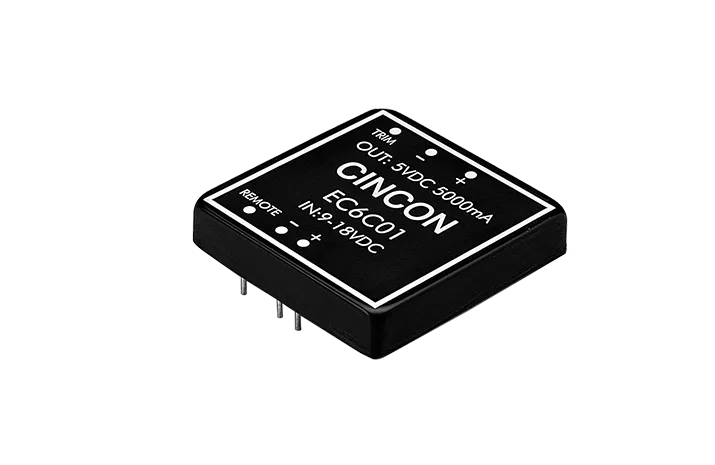

    EC6C 30W 18~36V, 36~72V, 9~18V 12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V, ±5V 500Vdc Isolation
EN60950-1
2.00x2.00x0.40(DIP)

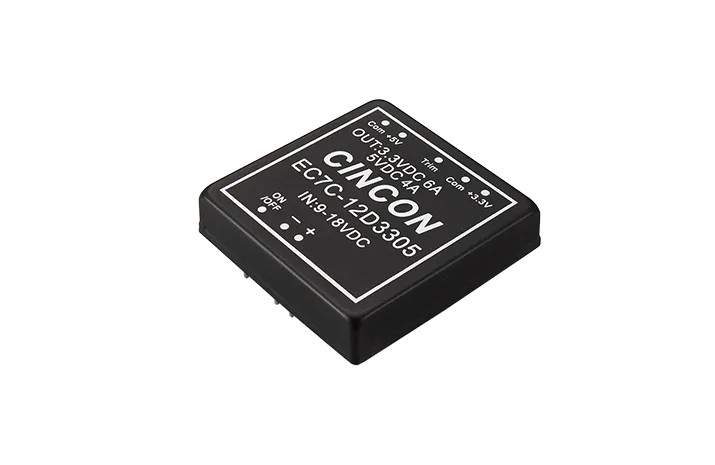

    EC7C 40W 18~36V, 36~75V, 9~18V 12V, 15V, 2.5V, 3.3/5V, 3.3/±12V, 3.3/±15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V 1.5KVdc Isolation
EN60950-1
2.00x2.00x0.40(DIP)

High Isolation 6KV

Model Power Input Voltage Output Voltage Features Dimensions (Inch)

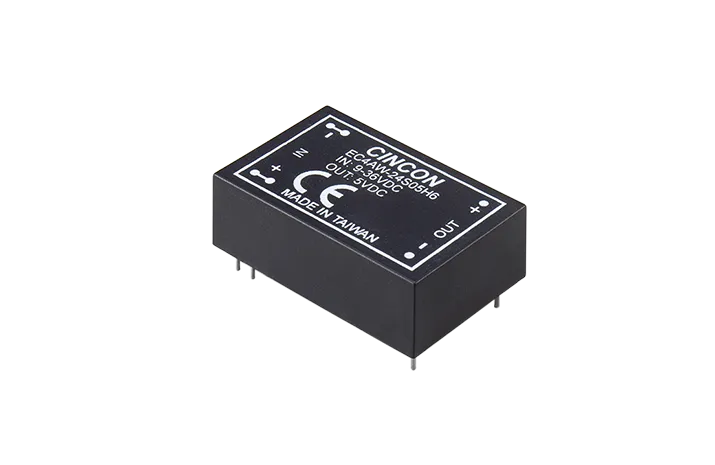

    EC4AW-H6 6W 18~72VDC, 9~36VDC 12V, 5V, ±12V, ±15V 6KVdc Isolation
EN55032 Class A
5uA Leakage Current
1.25x0.80x0.40
(DIP24)

+/-10% Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)

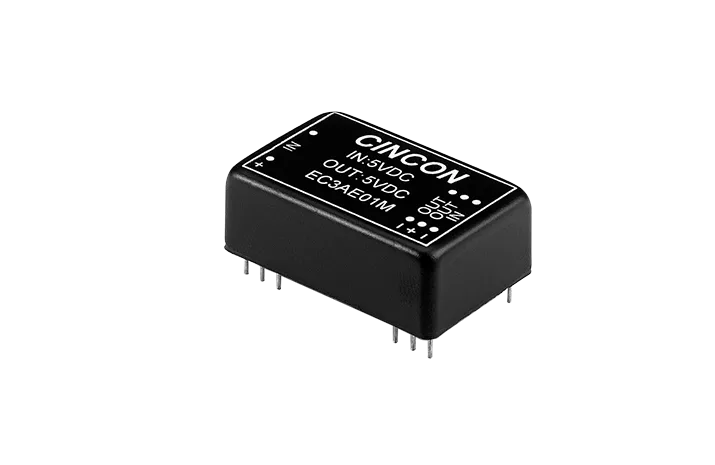

    EC3AE 3W 12V, 24V, 28V, 48V, 5V 12V, 15V, 5V, ±12V, ±15V 1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
