OVC III Power Supply
The Overvoltage Category (OVC) is used to define the level of transient overvoltage caused by events like lightning or unstable power. According to IEC 60664-1, it defines four OVC categories. The majority of mains-powered equipment found in buildings can be classified into OVC II and OVC III categories.
Generally, OVC II encompasses domestic, workshop, and office equipment that is connected via a mains plug and is individually protected by a fuse or circuit breaker. On the other hand, OVC III mainly applies to hard-wired equipment installed inside switch cabinets or distribution panels, including relays, circuit breakers, and fixed-installation power supplies.

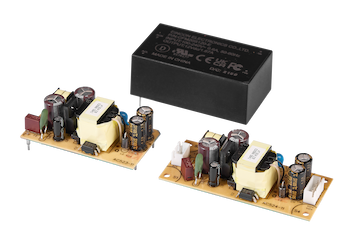

Cincon AC-DC OVC III power supplies from 4W to 70W. The OVC III mainly applies to hard-wired equipment installed inside switch cabinets or distribution panels.
ITE/Industrial On-Board Open Frame
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| NEW | CFM04S | 4W | 85-305 | 3.3V, 5V, 12V, 15V, 24V | Altitude 5000m Class II |
1.56x0.764x0.720 (PCB-mount) 1.62x0.83x0.787 (Encapsulated) 1.95.x0.71x0.689 (Wafer) |
| CFM06S | 6W | 90-264 | 3.3V, 5V, 9V, 12V, 15V, 24V | Altitude 5000m Class II |
1.555x0.764x0.720 (PCB-mount) 1.618x0.827x0.787 (Encapsulated) 1.950.x0.728x0.689 (Wafer) |
|
| CFM12S | 12W | 90-264 | 5V, 9V, 12V, 15V, 24V | Altitude 5000m Approval EN60335-1 Class II |
1.500x1.000x0.764 (PCB-mount) 1.600x1.1x0.772 (Encapsulated) 2.150x1.000x0.681 (Wafer) |
|
| NEW | CFM20S | 20W | 90-264 | 5V, 12V, 15V, 24V, 48V | Altitude 5000m Meets EN60335-1 Class II |
2.382x1.300x0.906 (PCB-mount) 2.482x1.402x0.933 (Encapsulated) 3.000x1.300x0.831 (Wafer) |
| CFM25S | 25W | 90-264 | 5V, 12V, 15V, 24V, 36V, 48V | 2 Times Peak Load Altitude 5000m Approval EN60335-1 Class II |
2.000x1.100x0.980 (PCB-mount) 2.091x1.193x0.976 (Encapsulated) 2.776x1.100x0.906 (Wafer) |
ITE/Industrial Connector Open Frame
| Model | Power | Input Voltage | Output Voltage | Features | Dimensions (Inch) | |
|---|---|---|---|---|---|---|
| NEW | CFM50S | 50W | 85-264 | 5V, 12V, 15V, 24V, 36V, 48V | Altitude 5000m Meets EN60335-1 ClassⅠ& Class Ⅱ |
3.000x2.000x1.067 (Wafer) 3.000x2.00x1.142 (PCB Mount) 3.598x2.520x1.358 (Cover) |
| CFM70S | 70W | 85-264 | 5V, 12V, 15V, 24V, 36V, 48V | Altitude 5000m Meets EN60335-1 ClassⅠ& Class Ⅱ |
3.000x2.000x1.067 (Wafer) 3.000x2.00x1.142 (PCB Mount) 3.598x2.520x1.358 (Cover) |
