CFM202S

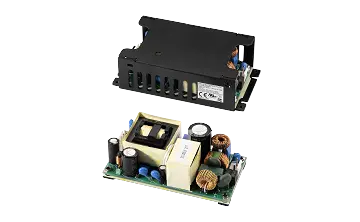

200Watts AC-DC 2’’ x4’’ ITE Open Frame Baseplate-cooled Power Supply

CFM202S 200Watts AC-DC 2’’ x4’’ ITE Open Frame Baseplate-cooled Power Supply

Universal Input Range 90~264Vac

High Efficiency up to 94%

2”x 4” Open Frame Compact Size

Class I & Class II

150W with Natural Convection (CFM202SXXXB)

180W with Natural Convection (CFM202SXXXC)

200W with Fan-Cooled

No Load Input Power Consumption<150mW

Approval Safety IEC/EN/UL 62368-1

Approval Safety IEC/EN 60335-1

Operating Altitude 5000m

Continuous Short Circuit Protection

Over Voltage Protection

Over Temperature Protection

Active PFC Function

Download File
Part Number Power (Watts) Input Voltage Output Voltage Output Current Efficiency (%) Operating Altitude Operating Temperature
NEW CFM202S120B 199.92W 90-264 12V 16.66A 92 5000m -40°C ~ 80°C
NEW CFM202S240B 199.92W 90-264 24V 8.33A 93 5000m -40°C ~ 80°C
NEW CFM202S280B 199.92W 90-264 28V 7.14A 93 5000m -40°C ~ 80°C
NEW CFM202S360B 200.16W 90-264 36V 5.56A 93 5000m -40°C ~ 80°C
NEW CFM202S480B 200.16W 90-264 48V 4.17A 94 5000m -40°C ~ 80°C
NEW CFM202S560B 200.48W 90-264 56V 3.58A 94 5000m -40°C ~ 80°C
NEW CFM202S120C 199.92W 90-264 12V 16.66A 92 5000m -40°C ~ 80°C
NEW CFM202S240C 199.92W 90-264 24V 8.33A 93 5000m -40°C ~ 80°C
NEW CFM202S280C 199.92W 90-264 28V 7.14A 93 5000m -40°C ~ 80°C
NEW CFM202S360C 200.16W 90-264 36V 5.56A 93 5000m -40°C ~ 80°C
NEW CFM202S480C 200.16W 90-264 48V 4.17A 94 5000m -40°C ~ 80°C
NEW CFM202S560C 200.48W 90-264 56V 3.58A 94 5000m -40°C ~ 80°C
