Railway DC DC converter, Railway power supplies manufacturer

Cincon offers a wide range of EN50155 compliant railway DC-DC converters and railway power supplies from 8W-600W, which are specially designed for common railway applications of 24V, 36V, 48V, 72V, 96V, 110V nominal voltage and also suitable for distributed power architectures, telecommunications, battery operated equipment and industrial applications.

In addition, Cincon has more products which are EN50155 designed to meet for you to choose.

About Cincon Railway DC DC converter, Railway power supplies

For the railway applications, Cincon has a series of ultra-wide input range DC-DC converters to cover the various distributed voltages. One of the advantages of a wide input DC converter, is that rather than buying and stocking multiple products, one can cut cost and inventory by using a single product that supports the various voltage requirements in the railway system. The widest input range is up to 18:1 and the rest of wide input ranges are 12:1, 8:1. The power range of the ultra-wide input range DC-DC converters starts from 20W to 200W.

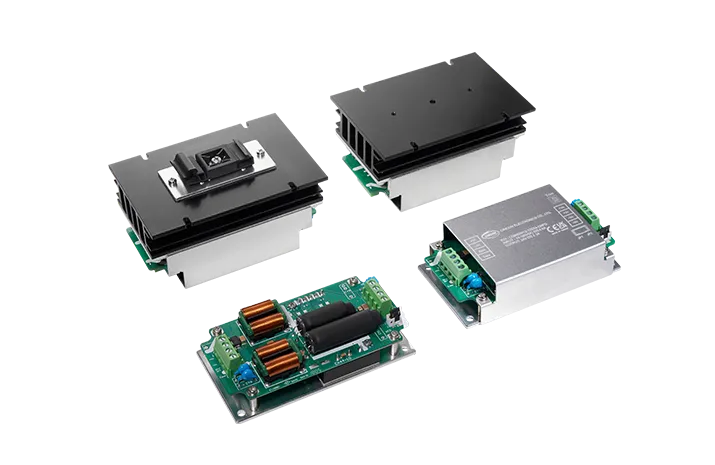

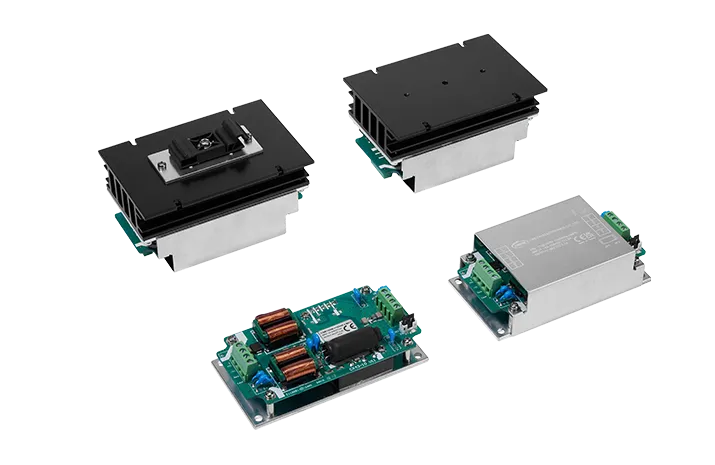

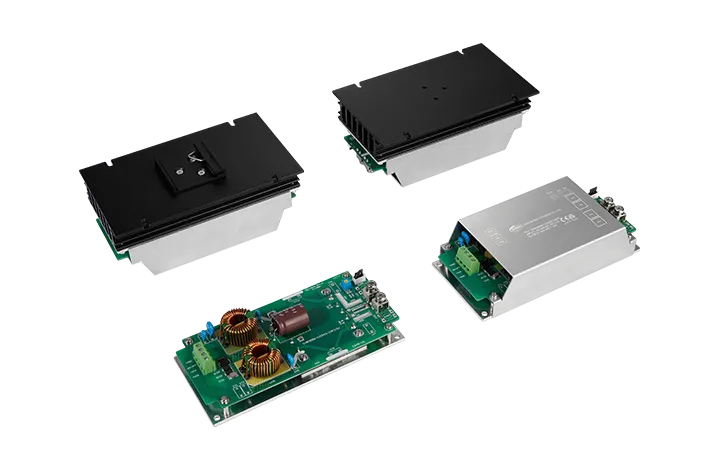

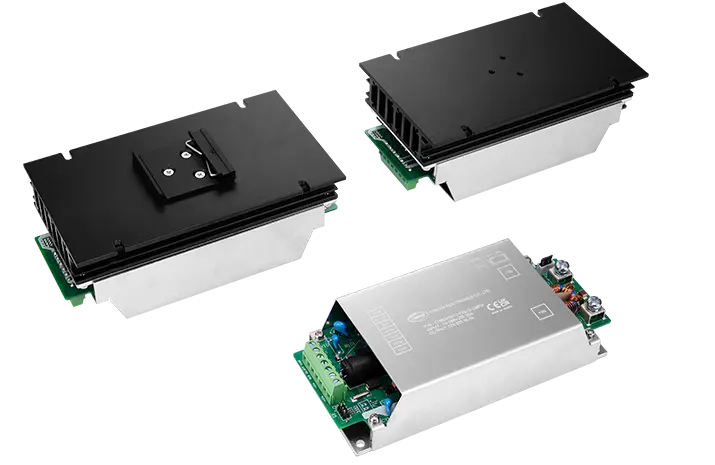

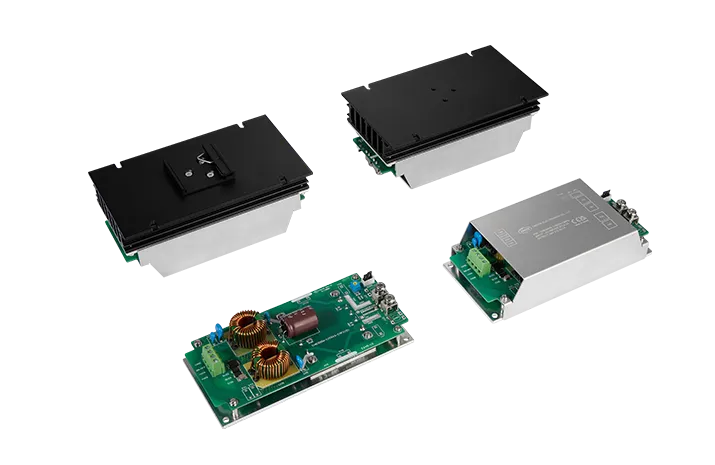

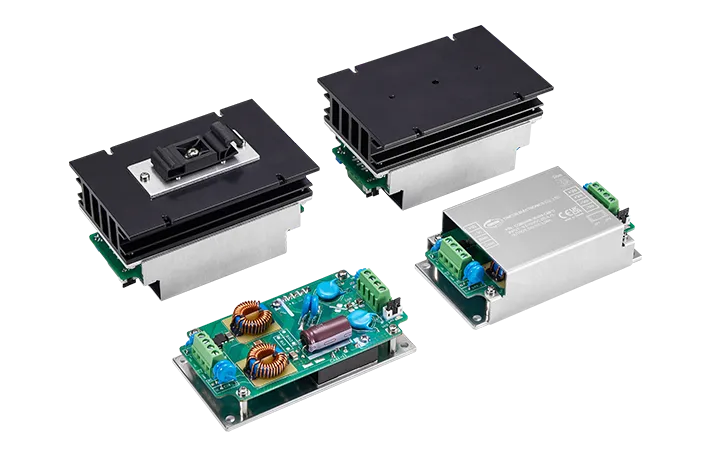

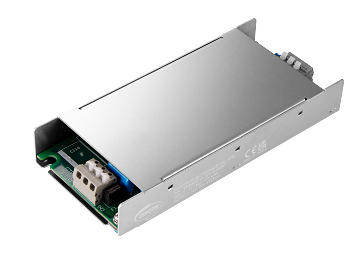

Cincon also provides a series of plug-in chassis-mount modules. The modularized Plug-in Cincon CMFC/CMFD series is a value-added series which could help you in solving the unpleasant EMC issues. Cincon also offers a detailed application note as the guideline tool to reduce your development time.





18:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)
NEW EC7AW18 10W 8.5~160V 5V, 12V, 15V, ±5V, ±12V, ±15V 3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
1.25x0.80x0.50(DIP24)
    EC7BW18 20W 8.5~160V 12V, 15V, 5V, ±12V, ±15V, ±24V 3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant
2.00x1.00x0.40(DIP)

16:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)
NEW EC7AW18-ECRT/EDRT 10W 10~160V 5V, 12V, 15V, ±5V, ±12V, ±15V 3KVac Isolation
EN50121-3-2/ EN45545-2 Compliant
Low Inrush Current
Input Reverse Polarity Protection
EN50155 Class S3 / C2 Without External Capacitor
EN50155 Compliant
4.00x2.14x0.80
(ECRT)
4.00x2.14x1.38
(EDRT)
NEW EC7BW18-ECRT/EDRT 20W 10~160V 12V, 15V, 5V, ±12V, ±15V, ±24V 3KVac Isolation
EN50121-3-2/ EN45545-2 Compliant
Low Inrush Current
Input Reverse Polarity Protection
EN50155 Class S3 / C2 Without External Capacitor
EN50155 Compliant
4.45x2.33x0.85
(ECRT)
4.45x2.33x1.43
(EDRT)

14:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)

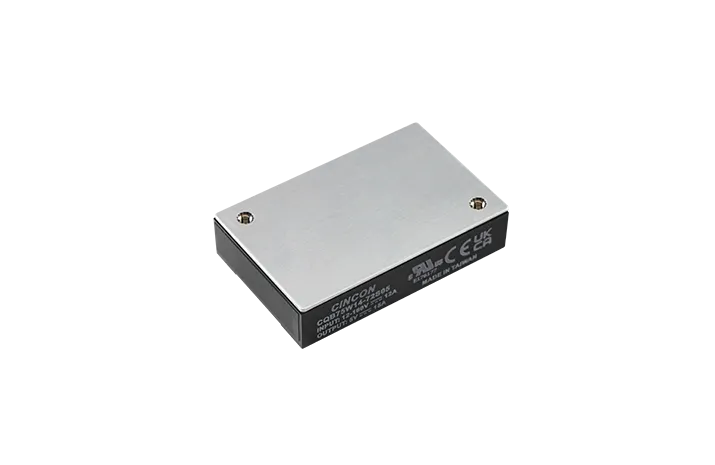

NEW CQB75W14 75W 12~160V 5V, 12V, 15V, 24V, 28V, 54V 3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
2.28×1.45x0.50
(Quarter Brick)

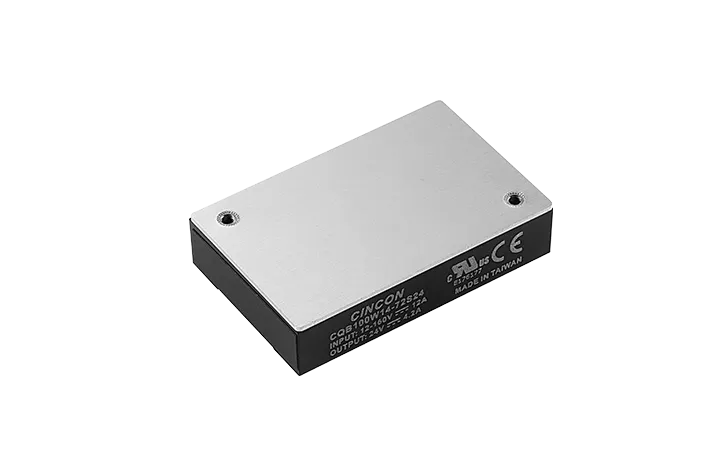

NEW CQB100W14 100W 12~160V 5V, 12V, 15V, 24V, 28V, 54V 3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
2.28×1.45x0.50
(Quarter Brick)

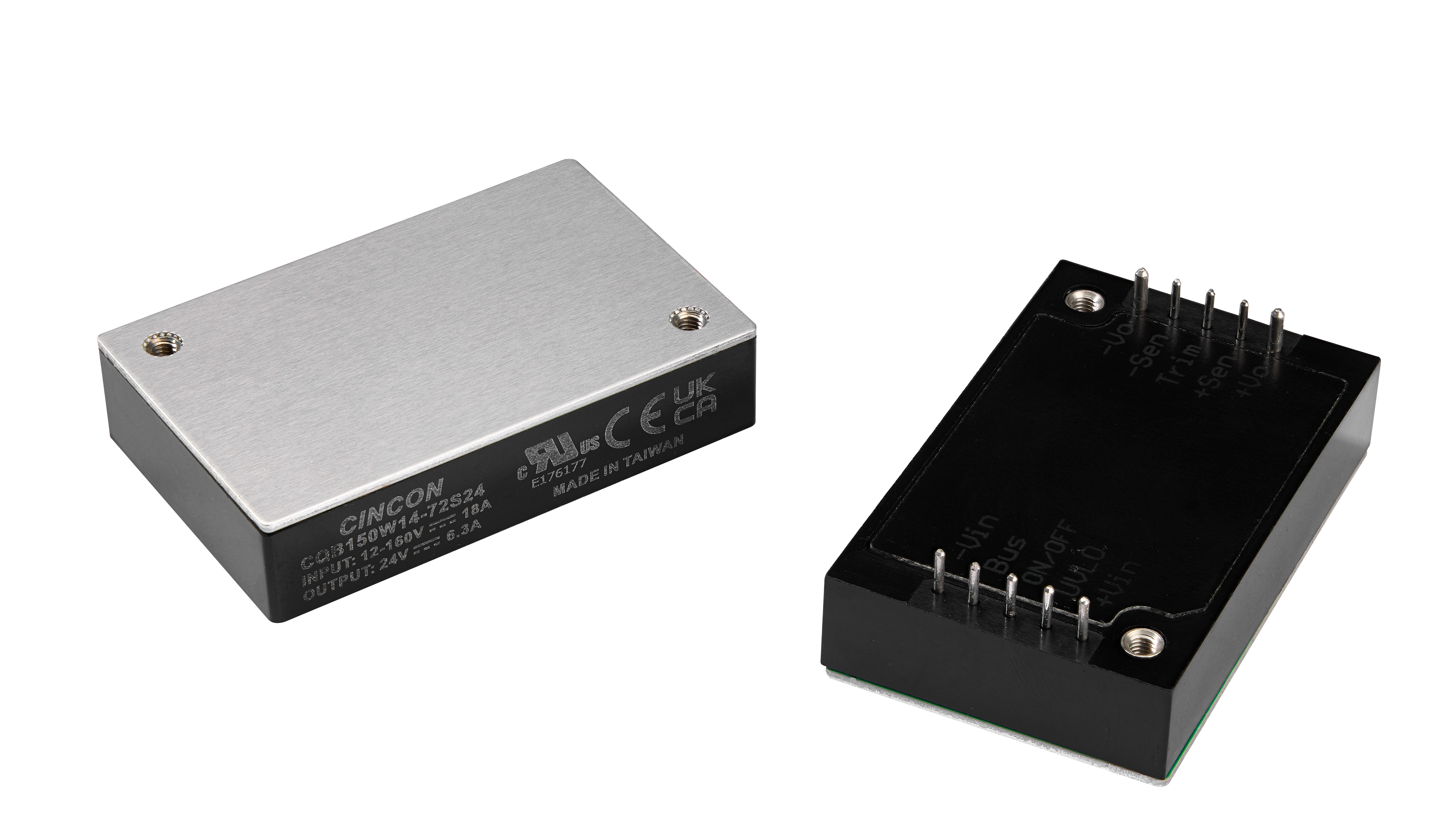

NEW CQB150W14 150W 12~160V 5V, 12V, 15V, 24V, 28V, 54V 3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
2.28×1.45x0.50
(Quarter Brick)

12:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)

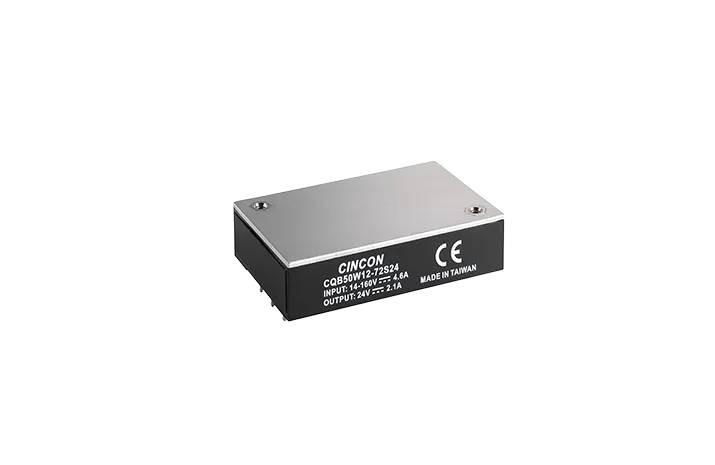

    CQB50W12 50W 14~160V 5V, 12V, 24V, 48V 3KVdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
2.28×1.45x0.50
(Quarter Brick)

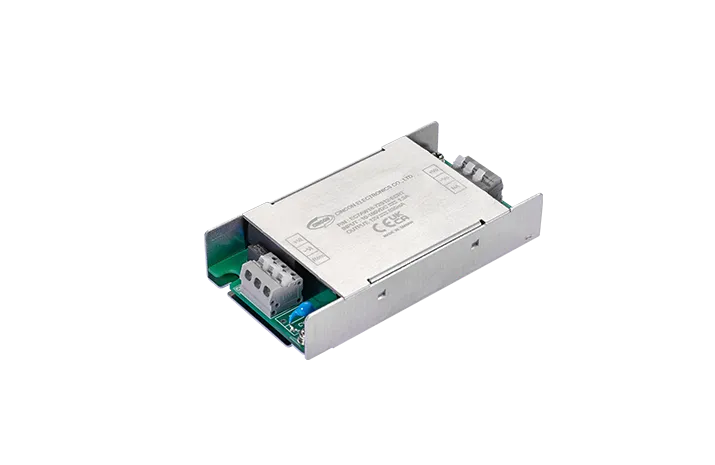

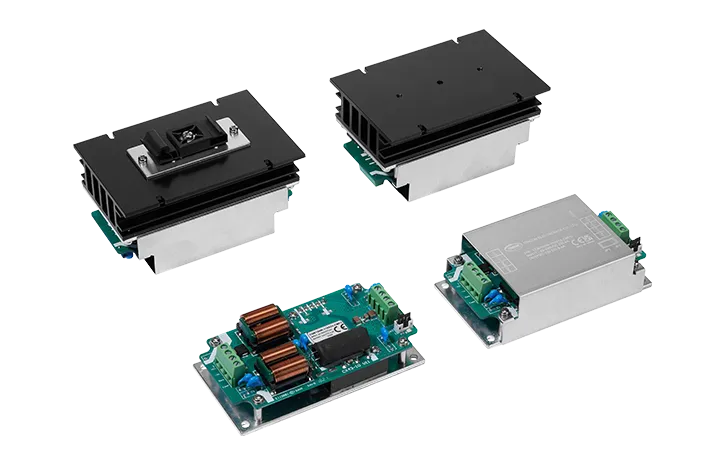

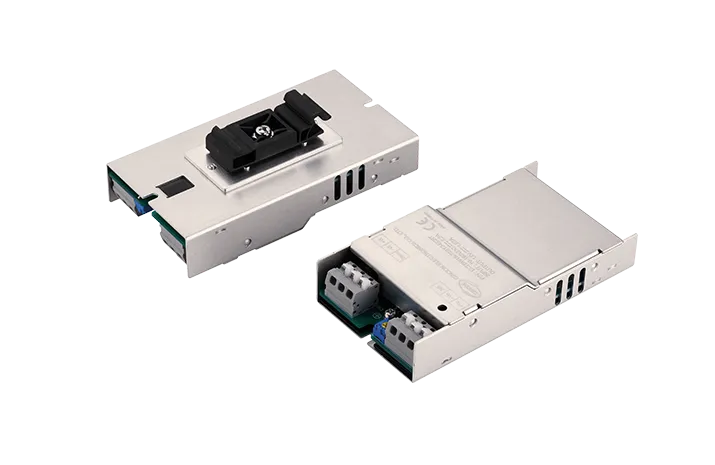

    CQB50W12-72SXX-CMFC(D) 50W 14~160V 12V, 24V, 48V, 5V Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155(EMC)
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

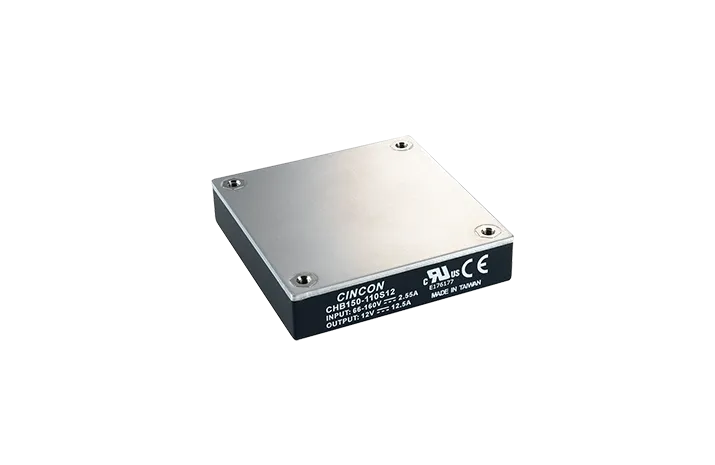

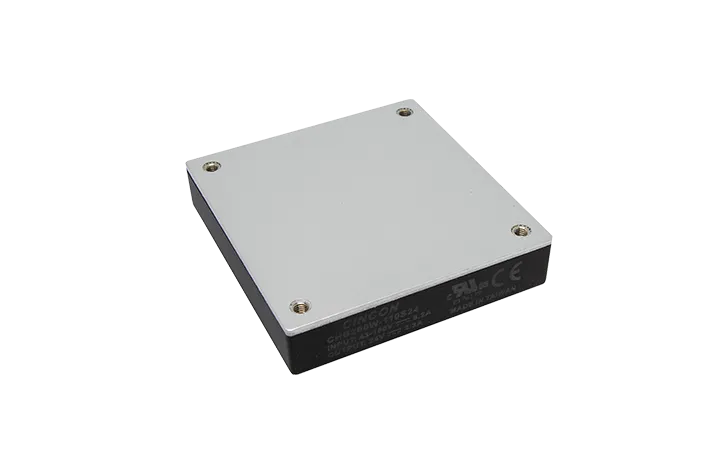

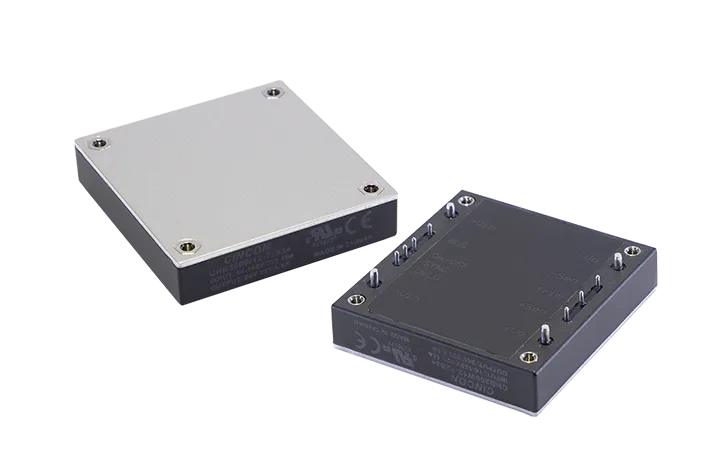

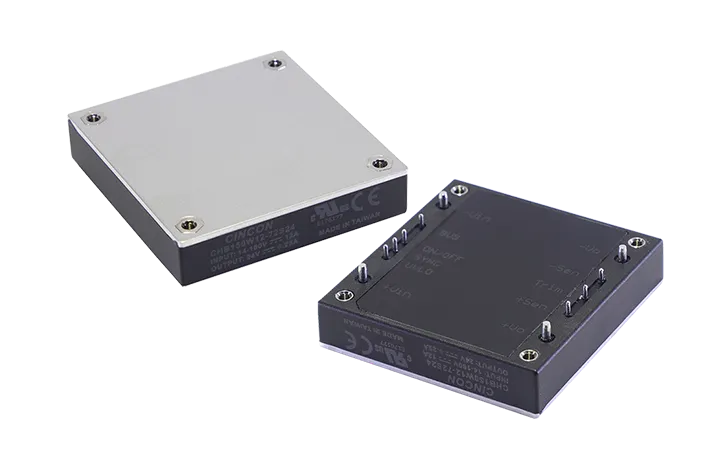

    CHB150W12 150W 14~160V 5V, 12V, 15V, 24V, 48V 3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
2.28×2.40x0.50
(Half Brick)

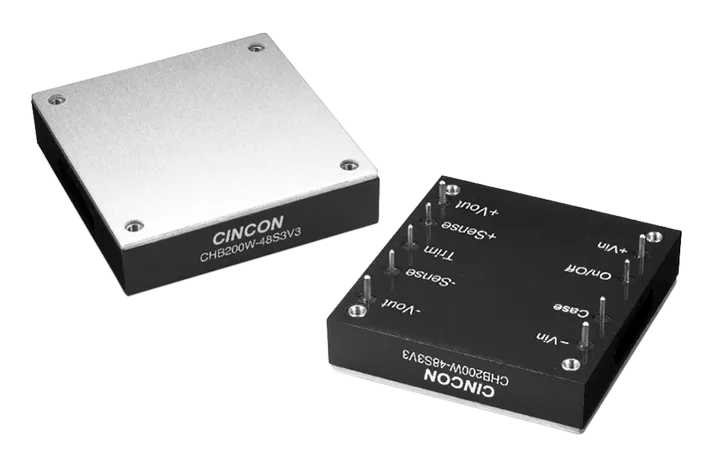

    CHB200W12 200W 14~160V 12V, 15V, 24V, 48V 3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
2.28×2.40x0.50
(Half Brick)

8:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)
    CQB50W8 50W 9~75V 12V, 15V, 24V, 28V, 48V 3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant
M2 grade option
2.28×1.45x0.50
(Quarter Brick)
    CQB50W8-36SXX-CMFC(D) 50W 9.5~75V 12V, 15V, 24V, 28V, 48V 3KVac Isolation
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155(EMC)
4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD)
    CQB75W8 75W 9~75V 12V, 15V, 24V, 28V, 48V 3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant
M2 grade option
2.28×1.45x0.50
(Quarter Brick)
    CQB75W8-36SXX-CMFC(D) 75W 9.5~75V 12V, 15V, 24V, 28V, 48V 3KVac Isolation
Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155(EMC)
4.60x2.40x1.46
(CMFC)
4.60x2.49x1.46
(CMFD)

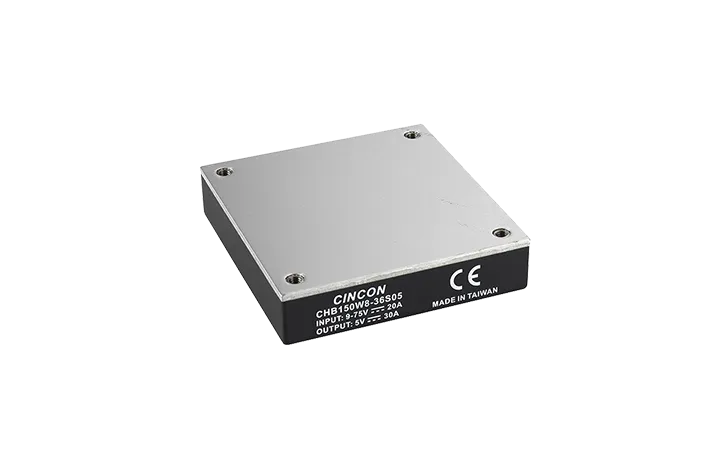

    CHB150W8 150W 9~75V 12V, 15V, 24V, 28V, 48V 1.5KVDC Isolation
UL60950-1
2.28×2.40x0.50
(Half Brick)

4:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)
    EC3AW 3W 18~72V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 500/1.5K/3KVdc Isolation 1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

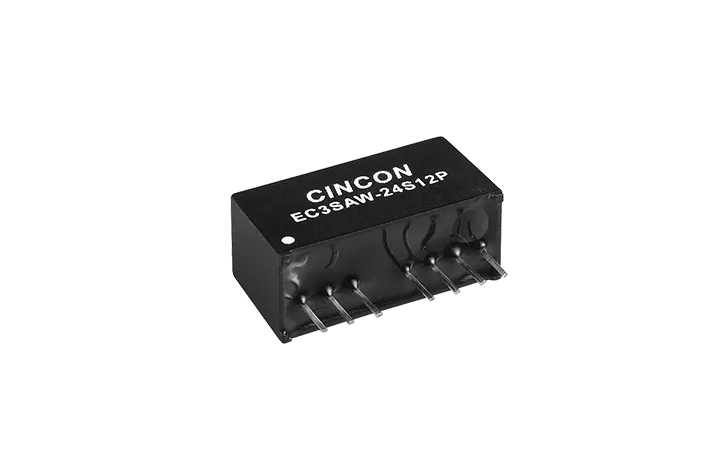

    EC3SAW 3W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVDC Isolation
Input UVP
0.86x0.36x0.44(SIP8)
    EC4AW 6W 18~72V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5K/3KVdc Isolation 1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

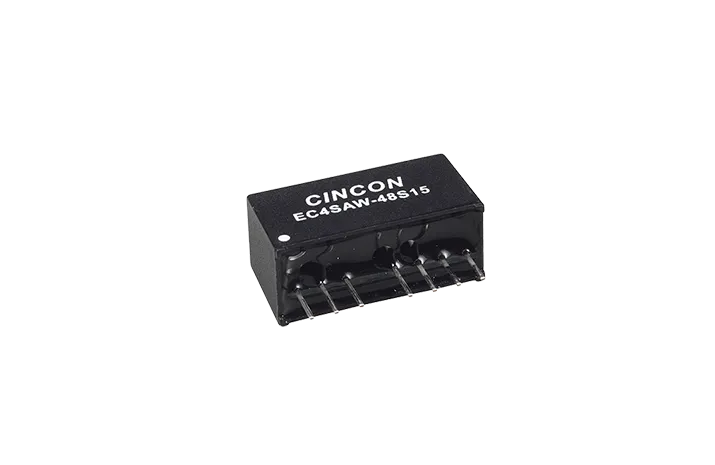

    EC4SAW 6W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVDC Isolation 0.86x0.36x0.44(SIP8)
    EC6AW 8W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation
EN50155 Compliant
1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
    EC6AW-110 10W 43~160V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
1.25x0.80x0.50(DIP24)

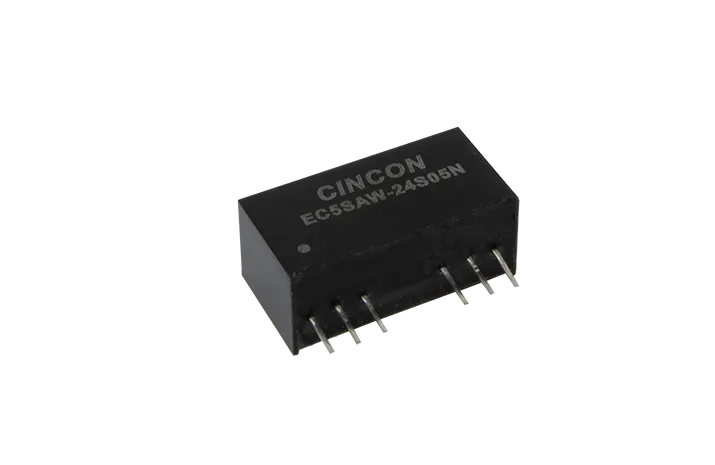

    EC5SAW 10W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 3KVDC Isolation 0.87x0.37x0.47(SIP8)
    EC2SBW 10W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation 1.00x1.00x0.40(DIP)
    EC8AW 15W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation
EN55032 Class A
1.25x0.80x0.40(DIP24)
    EC3SBW 15W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation 1.00x1.00x0.40(DIP)
    EC5BW 15W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V 1.5KVdc Isolation
EN55032 Class A
2.00x1.00x0.40(DIP)
    EC7BW 20W 9~36V, 18~75V 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V 1.5KVdc Isolation
EN45545-2
EN50155 Compliant
2.00x1.00x0.40(DIP)
    EC7BW-110 20W 43~160V 5V, 12V, 15V, ±12V, ±15V 3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
2.00x1.00x0.40(DIP)
    EC1SC 20W 18~72V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V EN55022 Class A 2.00×1.60×0.45(DIP)
    EC4SBW 20W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation 1.00x1.00x0.40(DIP)
    EC5SBW 30W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation
UL62368-1
M2 grade option
1.00x1.00x0.40(DIP)
    EC9BW 30W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation 2.00x1.00x0.40(DIP)
    ECLB40W-110 40W 43~160V 12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V 3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
2.05x1.20x0.40(DIP)
    ECLB40W 40W 18~75V, 9~36V 12V, 15V, 3.3V, 5V, ±12V, ±15V 1.5KVdc Isolation
With Mounting Inserts
2.05x1.20x0.40(DIP)

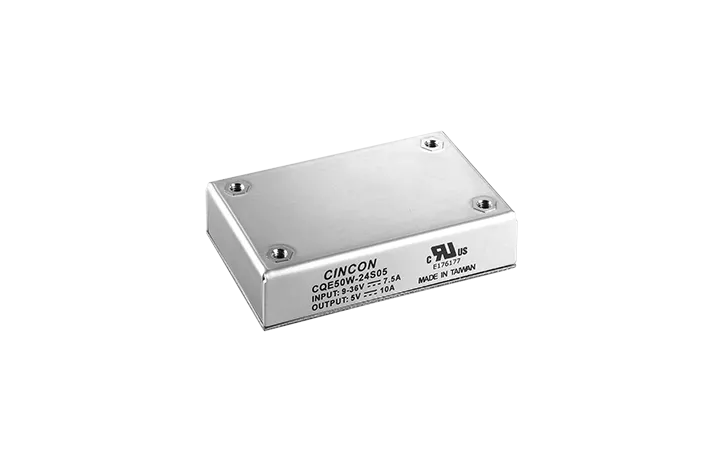

    CQE50W 50W 18~75V, 9~36V 12V, 15V, 24V, 3.3V, 48V, 5V 1.5KVDC Isolation
UL60950-1
2.28×1.45x0.50
(Quarter Brick)
    CHB50W 50W 18~75V, 9~36V 12V, 15V, 24V, 28V, 3.3V, 48V, 5V 1.5KVDC Isolation
UL60950-1
2.28×2.40x0.50
(Half Brick)

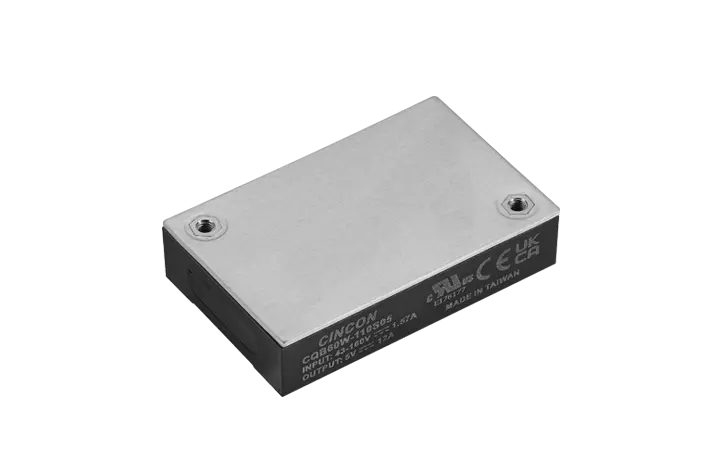

    CQB60W-110S 60W 43~160V 12V, 15V, 24V, 28V, 48V, 5V 3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
2.28×1.45x0.50
(Quarter Brick)
    ECLB60W 60W 18~75V, 9~36V 3.3V, 5V, 12V, 15V, ±12V, ±15V 1.5KVdc Isolation
With Mounting Inserts
M2 grade option
2.05x1.20x0.40(DIP)
    ECLB75W 75W 18~75V, 9~36V 5V, 12V, 15V, ±12V, ±15V, ±24V 2.25KVdc Isolation
With Mounting Inserts
M2 grade option
2.05x1.20x0.40(DIP)

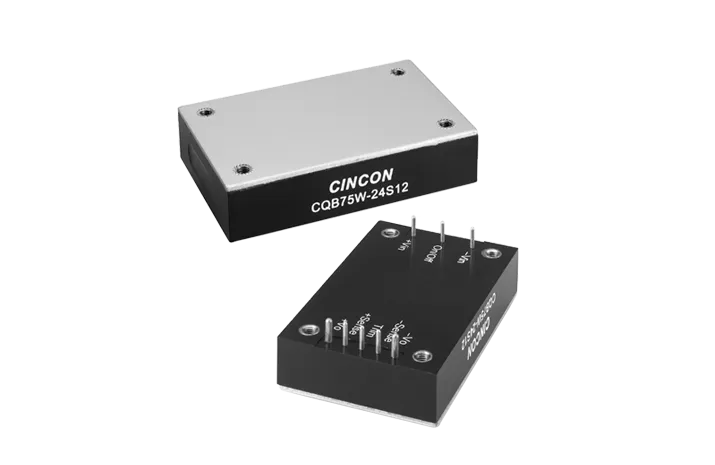

    CQB75W 75W 18~75V, 9~36V 12V, 15V, 24V, 3.3V, 5V 1.5KVDC Isolation
UL60950-1
2.28×1.45x0.50
(Quarter Brick)

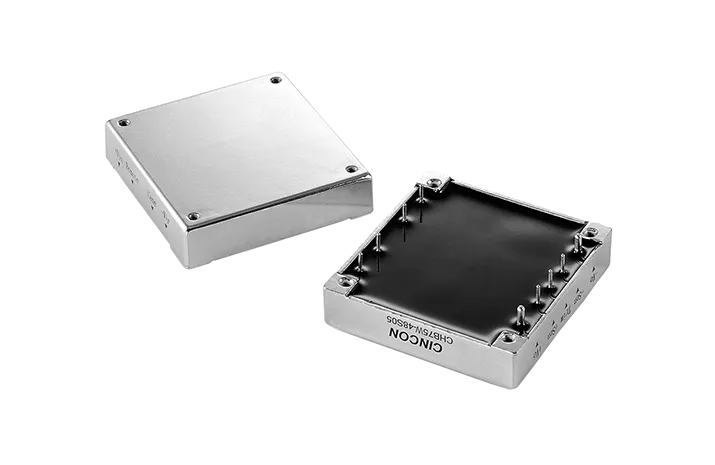

    CHB75W 75W 18~75V, 9~36V 12V, 15V, 24V, 28V, 3.3V, 48V, 5V 1.5KVDC Isolation
UL60950-1
2.28×2.40x0.50
(Half Brick)

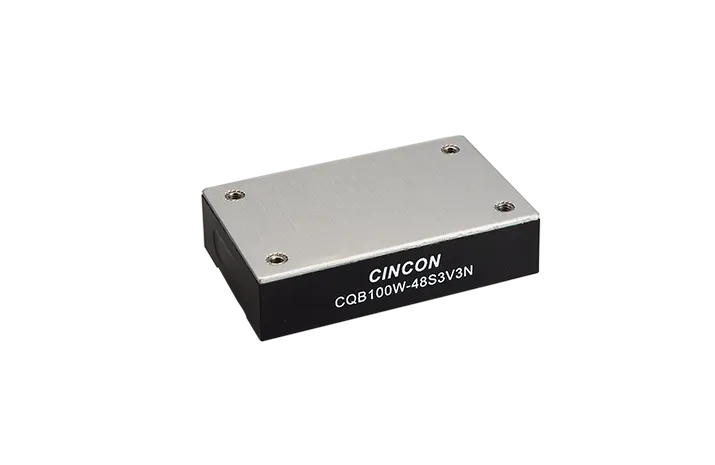

    CQB100W 100W 18~75V, 9~36V 12V, 15V, 24V, 3.3V, 5V 1.5KVDC Isolation
UL60950-1
2.28×1.45x0.50
(Quarter Brick)

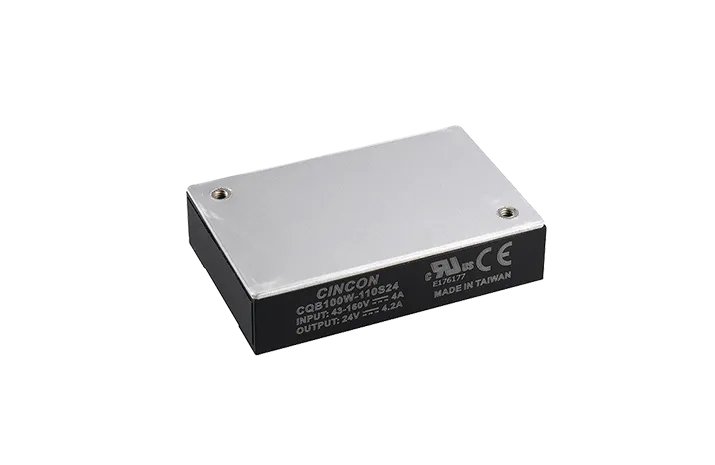

    CQB100W-110S 100W 43~160V 12V, 15V, 24V, 28V, 48V, 5V 3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
2.28×1.45x0.50
(Quarter Brick)
NEW CQB100W-110SXX-CMFC(D) 100W 43~160V 5V, 12V, 15V, 24V, 28V, 48V Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155(EMC)
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)
    CHB100W 100W 18~75V, 9~36V 12V, 15V, 24V, 28V, 3.3V, 48V, 5V 1.5KVDC Isolation
UL60950-1
2.28×2.40x0.50
(Half Brick)

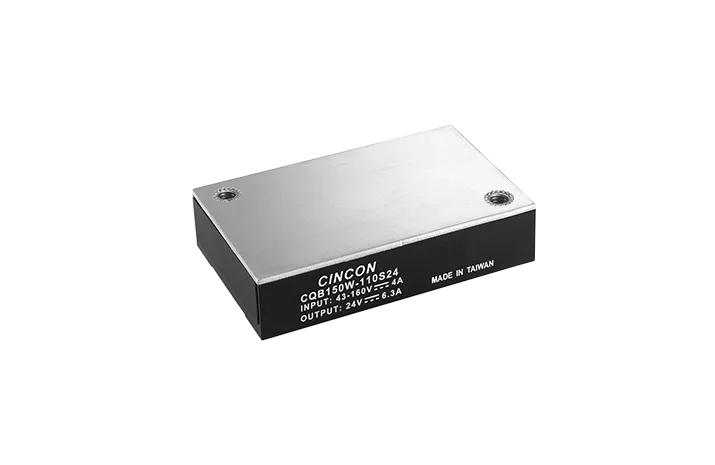

    CQB150W-110S 150W 43~160V 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
2.28×1.45x0.50
(Quarter Brick)
    CQB150W-110SXX-CMFC(D) 150W 43~160V 3.3V, 5V, 12V, 15V, 24V, 28V, 48V Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155(EMC)
4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

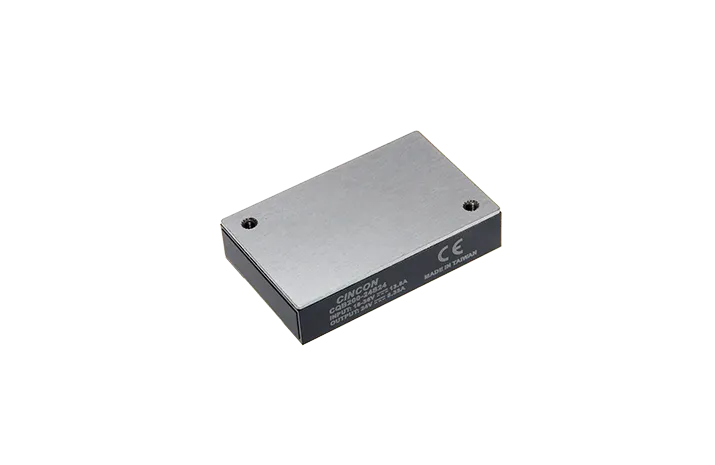

    CQB150W 150W 18~75V, 9~36V 12V, 15V, 24V, 28V, 48V, 5V 2250Vdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant
M2 grade option
2.28×1.45x0.50
(Quarter Brick)

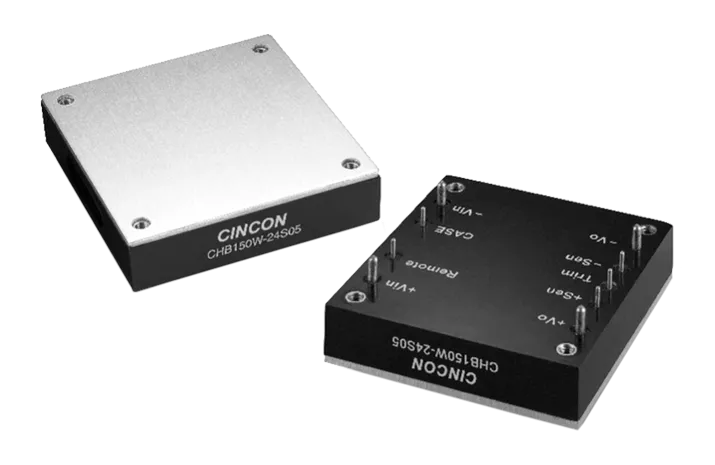

    CHB150W 150W 18~75V, 9~36V 12V, 15V, 24V, 28V, 3.3V, 48V, 5V 1.5KVDC Isolation
UL60950-1
2.28×2.40x0.52
(Half Brick)
    CHB200W 200W 10~36V, 18~75V 12V, 15V, 24V, 28V, 3.3V, 48V, 5V 1.5KVDC Isolation
UL60950-1
2.28×2.40x0.52
(Half Brick)
    CHB200W-110S 200W 43~160V 5V, 12V, 24V, 28V, 48V 3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
2.28×2.40x0.50
(Half Brick)

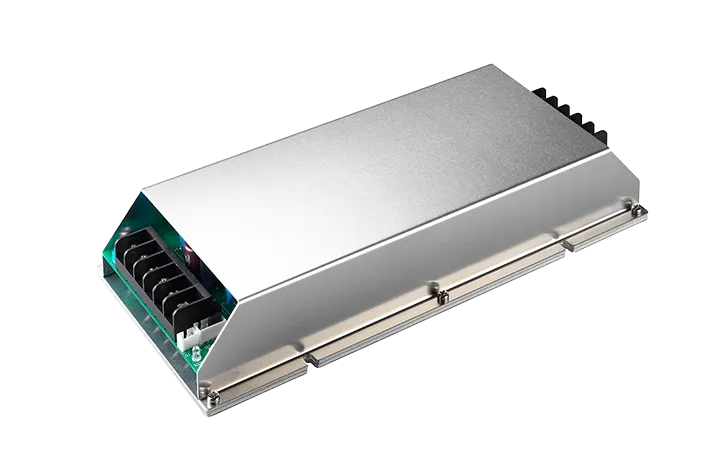

    CHB200W-110SXX-CMFC(D) 200W 43~160V 5V, 12V, 24V, 28V, 48V Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155(EMC)
6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)

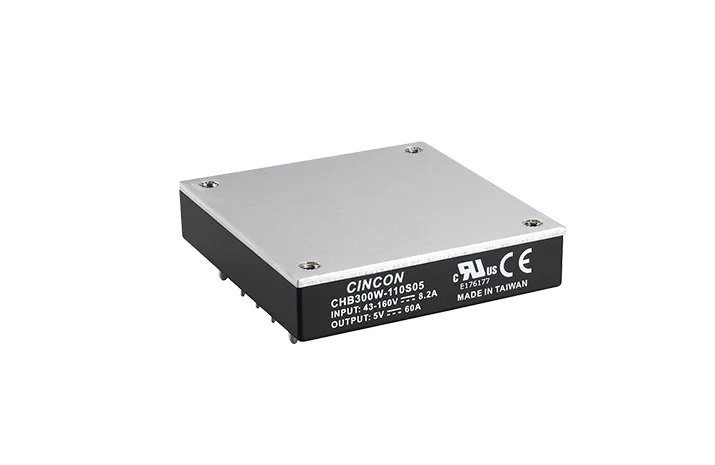

    CHB300W-110S 300W 43~160V 12V, 24V, 28V, 3.3V, 48V, 5V 3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant
2.28×2.40x0.50
(Half Brick)
    CHB300W-110SXX-CMFC(D) 300W 43~160V 3.3V, 5V, 12V, 24V, 28V, 48V Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155(EMC)
6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)

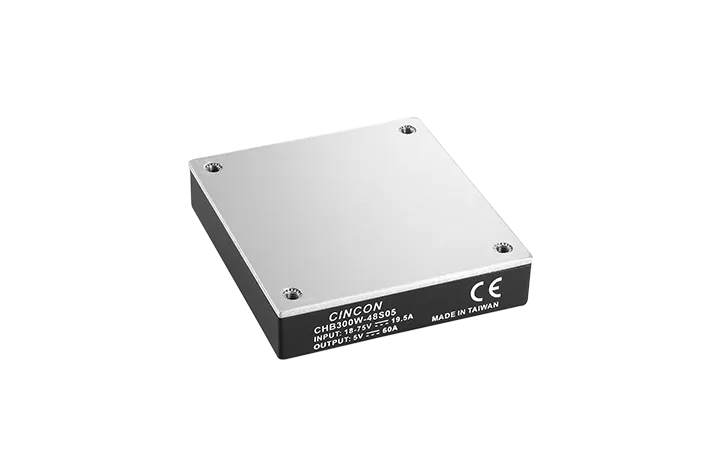

    CHB300W 300W 18~75V, 9~36V 12V, 15V, 24V, 28V, 48V, 5V 1.5KVDC Isolation
UL62368-1
2.28×2.40x0.50
(Half Brick)
    CFB400W 400W 18~75V, 9~36V 12V, 24V, 28V, 48V, 5V 1.5KVDC Isolation
UL60950-1
4.60×2.40x0.50
(Full Brick)

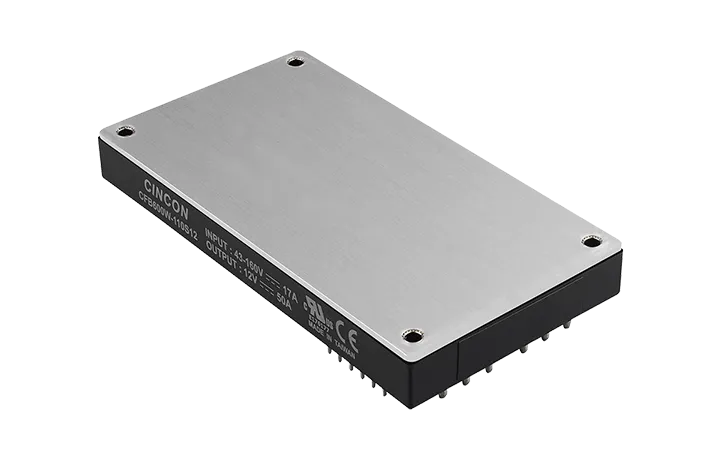

    CFB600W-110S 600W 43~160VDC 12V, 24V, 28V, 48V 2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
4.60×2.40x0.50
(Full Brick)
    CFB600W-110SXX-CMFD 600W 43~160VDC 12V, 24V, 28V, 48V Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155(EMC)
9.45x4.33x1.65

2:1 Input Range

Model Power Input Voltage Output Voltage Features Dimensions (Inch)

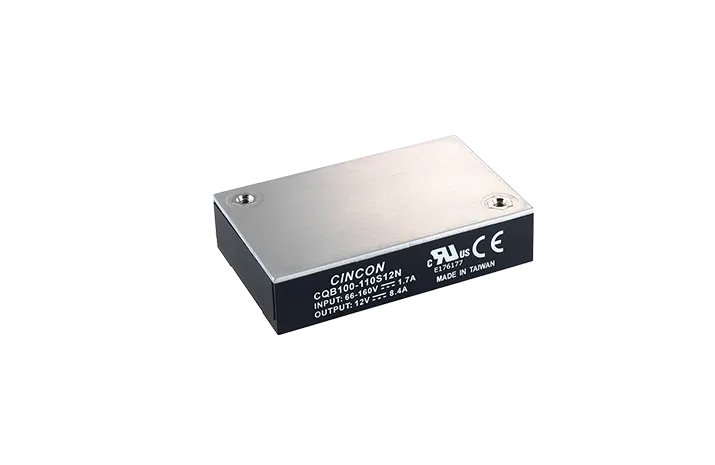

    CQB100-110S 100W 66~160V 12V, 24V, 3.3V, 5V 2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
2.28×1.45x0.50
(Quarter Brick)

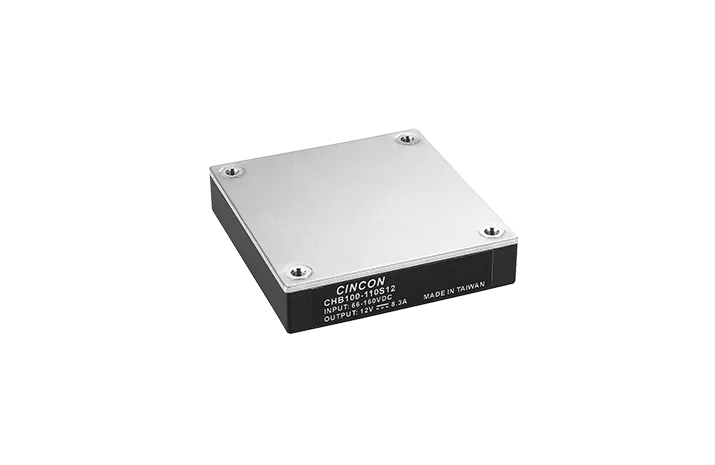

    CHB100-110S 100W 66~160V 12V, 15V, 24V, 48V 3KVac Isolation
EN45545-2
EN50155 Compliant
2.28×2.40x0.50
(Half Brick)
    CHB150-110S 150W 66~160V 12V, 24V, 5V 2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant
2.28×2.40x0.50
(Half Brick)
NEW CQB200 200W 18~36V 24V, 28V 2250Vdc Isolation
UL62368-1
EN45545-2
2.28×1.45x0.50
(Quarter Brick)

High Isolation 6KV

Model Power Input Voltage Output Voltage Features Dimensions (Inch)
    EC4AW-H6 6W 18~72VDC, 9~36VDC 12V, 5V, ±12V, ±15V 6KVdc Isolation
Design Meets Reinforced Insulation
EN55032 Class A
5uA Leakage Current
1.25x0.80x0.40
(DIP24)

EMI Filter - PCB Mount

Model Power Input Voltage Output Voltage Features Dimensions (Inch)
    FM10/20 10-20A 75V Input 75V Maximum 2.00x1.00x0.46
2.00x1.60x0.50
    FM30R 30A 80V Input 80V Maximum 2.28x1.45x0.50
    FM05D 5A 200V Input 200V Maximum 2.28x1.45x0.50
    FM10D 10A 200V Input 200V Maximum 2.28x2.40x0.97
